產品詳情 / Product details

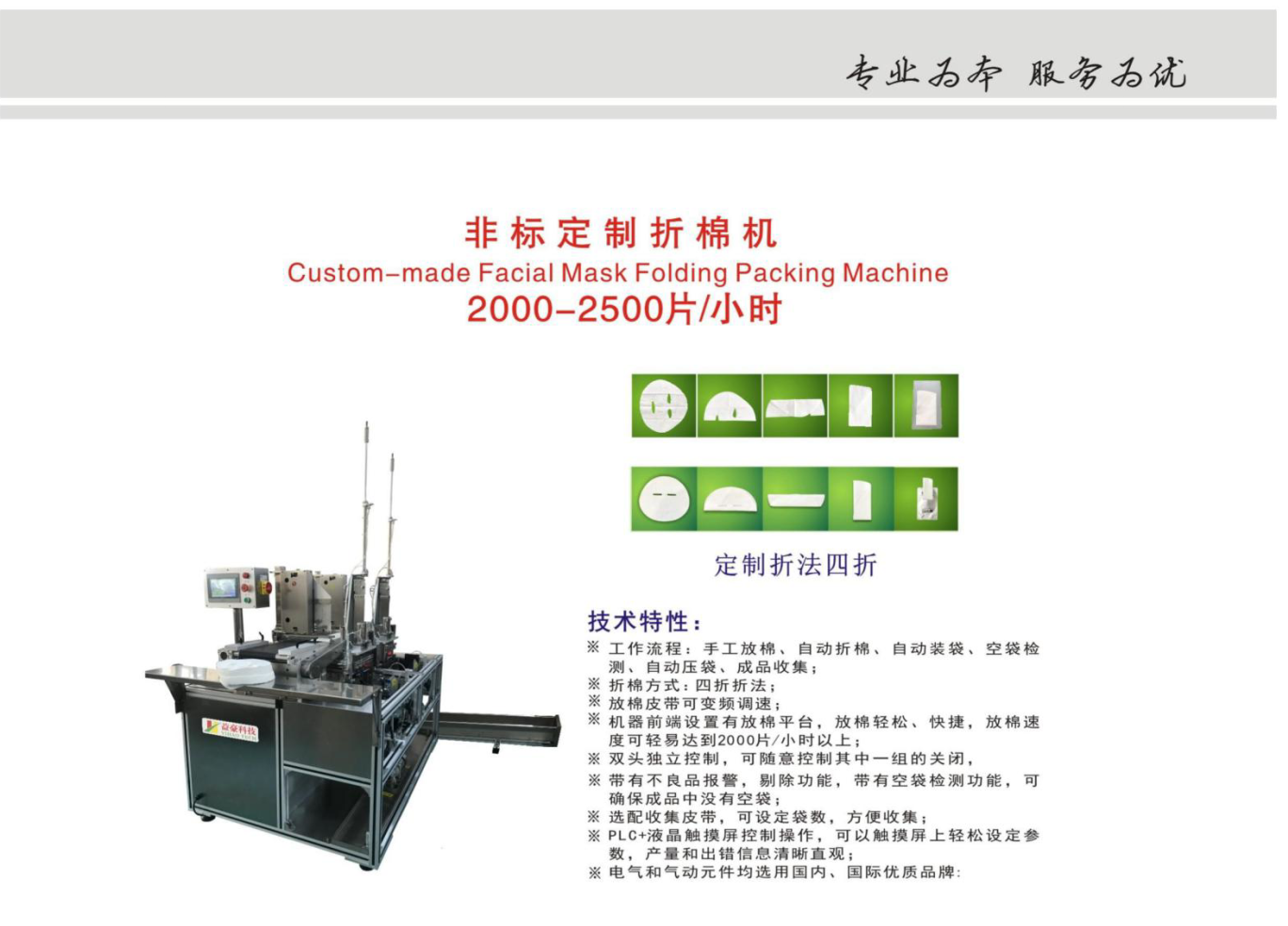

技術特性 / Technical characteristics

1、工作流程：手工放棉、自動折棉、自動轉向、自動裝袋、空袋檢測、自動壓袋、成品收集；

2、折棉方式：根據客戶要求定制；

3、放棉皮帶可變頻調速；

4、機器前端設置有放棉平臺，放棉輕松、快捷，放棉速度可輕易達到2000片/小時以上；

5、雙頭獨立控制，可隨意控制其中一組的關閉，

6、帶有不良品報警，剔除功能，帶有空袋檢測功能，可確保成品中沒有空袋；

7、選配收集皮帶，可設定袋數，方便收集；

8、PLC+液晶觸摸屏控制操作，可以觸摸屏上輕松設定參數，產量和出錯信息清晰直觀；

1. Working procedure: Put the try mask sheet and bags by hands-auto mask sheet folding-auto rotating-auto bagging –Auto empty       bag checking—Auto bag pressing--auto bagging output；




2. Folding method: customized according to customer requirements；

3. Inverter controlled facial mask sheet feeding belt, speed adjustable；

4. With facial mask sheet table for convenient and fast feeding the sheets, speed up to more than 2000pcs/hour；

5. Separate control for two folding units, could turn off either of the folding unit, One button switch between ；

6. With defective products alarm and reject function, with bag checking function to ensure no empty bag in thefinished products；

7. Optional collecting belt , could set production amount, for easy collection；

8. PLC and touch screen control system, easy to view the working status and friendly for operation；

9. Selected electrical and pneumatic parts from domestic and international brands；

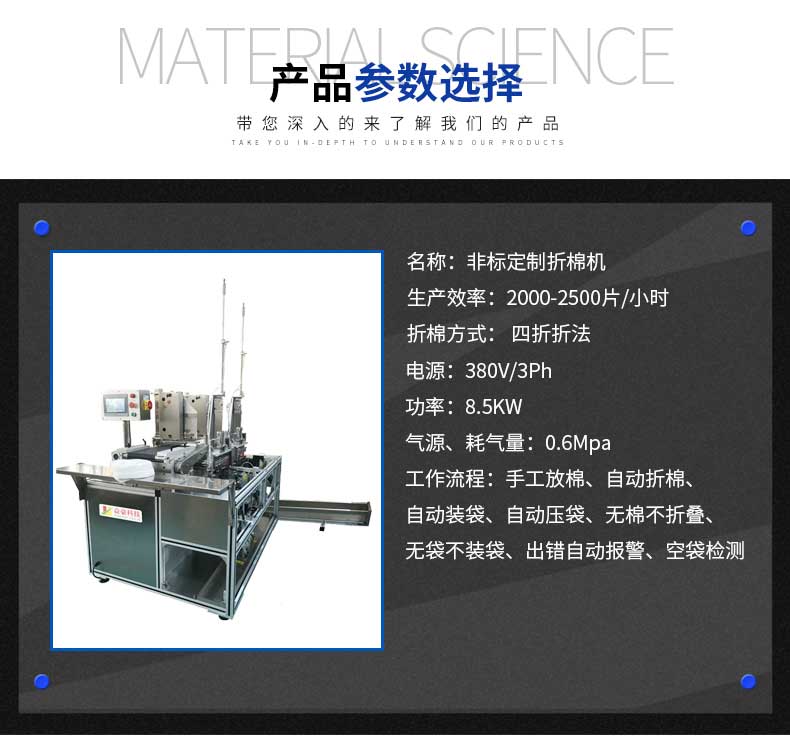

技術參數 / Technical parameters

技術參數  Standard Specification:

產品細節 / Product details

產品視頻 / Product video
